| Product Name |

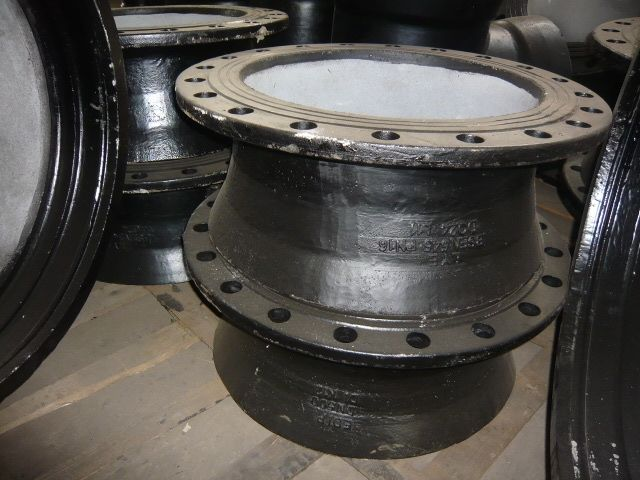

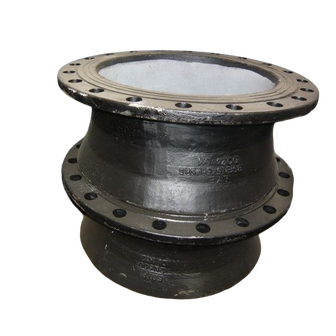

Ductile Iron Pipe Fittings - Double Flanged Reducer / Taper |
| Material |
GGG500-7 or other Ductile Iron |
| Technic |
Casting |
| Standard |
ISO2531, EN545, EN598, ANSI |
| EN Application |
EN545: Clean Water
EN598: Sewage Pipelines |
| Flange Drilling |
EN1092-2, ISO7005-2, 150LB, 300LB |
| Socket Type |
Tyton type, K type |
| Internal Lining |
Cement Mortar Lined or Fusion Bond Epoxy Powder |
| External Coating |
Zinc + Black Bitumen or Fusion Bond Epoxy Powder |
| Model Number |
DN80–DN2600 |
| Size |
DN50–DN2600 |
| Working Pressure |
PN10 / PN16 / PN25 / PN40 |
| Color |
Blue, Black, Red, Brown |
| Usage |
Pipeline Connection |
| Certificate |
ISO 9001:2008 |
| Warranty |
2 Years |
| Customized Support |
OEM, ODM |
| Accessories |
Bolts, Nuts and Rubber Gaskets are available |
| Inspection |
Third-party SGS inspection available as per customer request |
| Package |
Wooden Box Packaging |
