DUCTILE IRON FITTING

ISO2531EN545 Low Pressure Ductile Iron Pipe Fitting Double Flange Casting Painting DN80-DN2000

KEY ATTRIBUTES

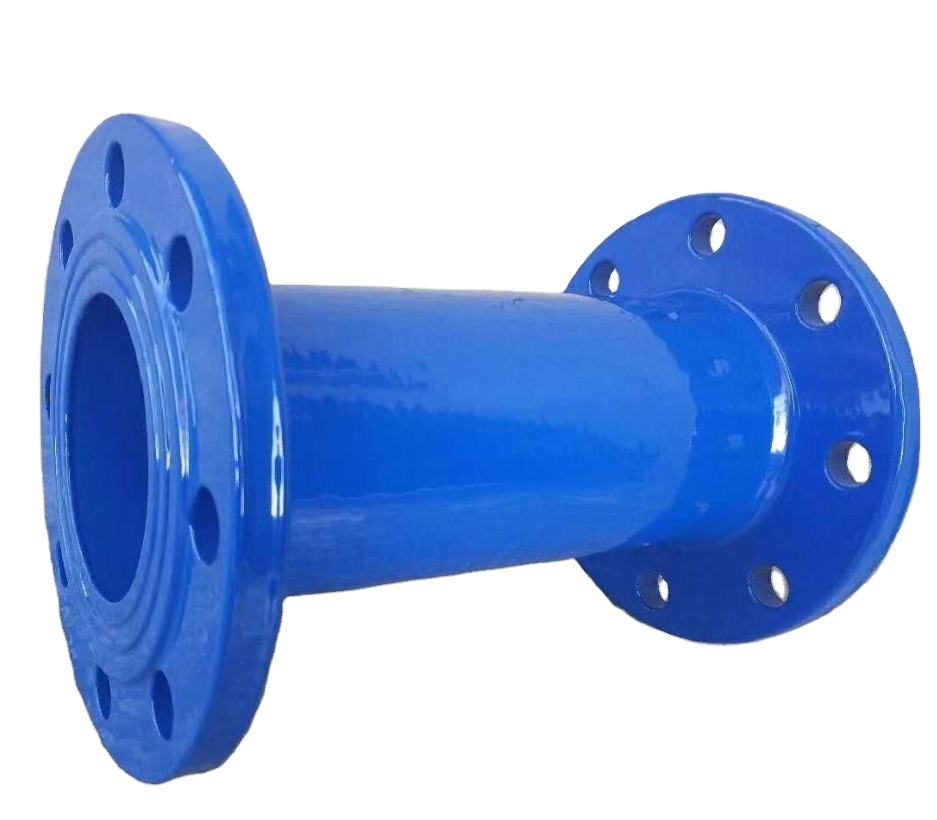

Product Name	Ductile Iron Pipe Fittings - Double Flanged Reducer / Taper
Material	GGG500-7 or other Ductile Iron
Technic	Casting
Standard	ISO2531, EN545, EN598, ANSI
EN Application	EN545: Clean Water EN598: Sewage Pipelines
Flange Drilling	EN1092-2, ISO7005-2, 150LB, 300LB
Socket Type	Tyton type, K type
Internal Lining	Cement Mortar Lined or Fusion Bond Epoxy Powder
External Coating	Zinc + Black Bitumen or Fusion Bond Epoxy Powder
Model Number	DN80–DN2600
Size	DN50–DN2600
Working Pressure	PN10 / PN16 / PN25 / PN40
Color	Blue, Black, Red, Brown
Usage	Pipeline Connection
Certificate	ISO 9001:2008
Warranty	2 Years
Customized Support	OEM, ODM
Accessories	Bolts, Nuts and Rubber Gaskets are available
Inspection	Third-party SGS inspection available as per customer request
Package	Wooden Box Packaging

DN(mm)	L(mm) PN16	Weight (Kg)
100*80	200	9.3
150*80	400	16.4
150*100	300	15.3
200*100	600	27.5
200*150	300	21.5
250*150	600	39
250*200	300	29.5
300*150	650	48.5
300*200	600	51.5
300*250	300	39.5
350*200	650	64
350*250	600	67.5
350*300	300	52.5
400*200	700	77.5
400*250	650	81.5
400*300	600	85
400*350	300	67
450*250	700	97
450*300	650	101
450*350	600	106
450*400	300	83
