ProductsSOCKET THREAD SCH40 UPVC COMPACT BALL VALVE MANUFACTURER
UPVC SCH40 80 PIPE AND FITTING

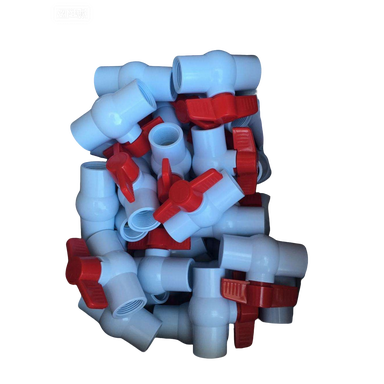

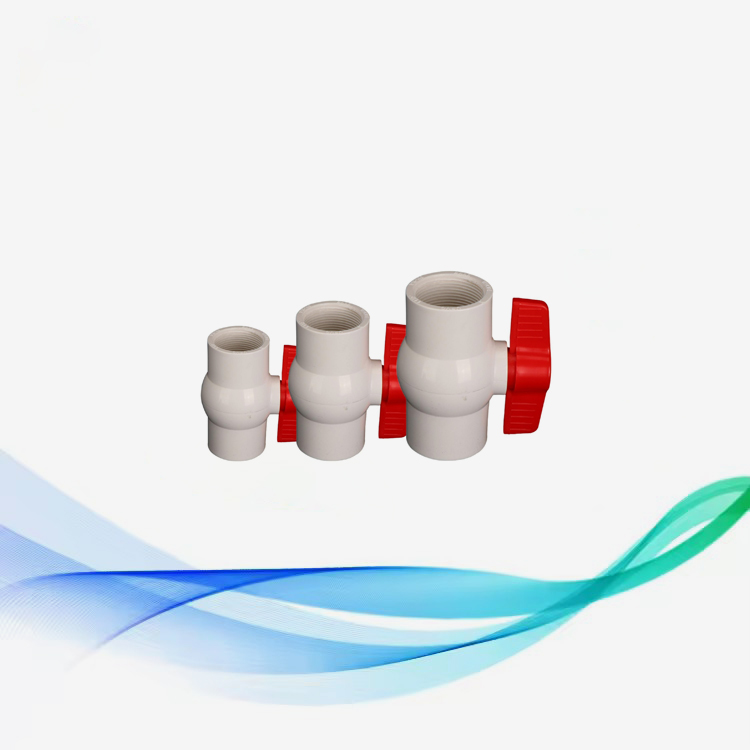

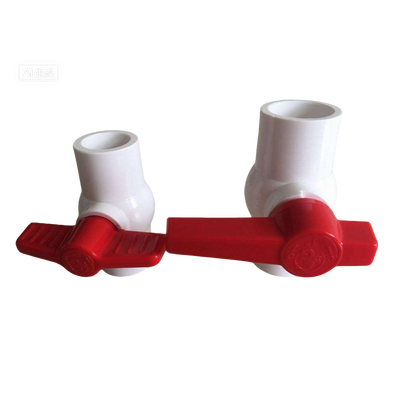

SOCKET THREAD SCH40 UPVC COMPACT BALL VALVE MANUFACTURER
SOCKET THREAD SCH40 UPVC COMPACT BALL VALVE MANUFACTURER
| KEY ATTRIBUTES | |
|---|---|
| Item | Details |
| Item No. | E01 |
| Item Name | SINGLE BALL VALVE (Socket or Thread) / SOCKET THREAD SCH40 UPVC COMPACT BALL VALVE |
| Standard | DIN, SCH, JIS, CNS, BS, ANSI (SCH40) |
| Material | UPVC |
| Color | Grey, White, Transparent Color |
| Use | Swimming Pool, Engineering Construction, Industry |
| Sample | Free Provided |
| Certificate | ISO9001:2015, SGS, GMC, CNAS |
| Delivery | 7-30 days |
| Packing | Carton, Poly Bag, Color Box or Customized |
| Size & Dimension Parameters (ITEM NO.:E01) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Nom d1 | DIN d1 | ANSI d1 | BS d1 | d | D | I | L | H1 | H2 | W | |
| 1/2" | 20 | 20 | 21.3 | 22 | 14.5 | 32 | 22 | 80 | 64.3 | 44.9 | 68.5 | |
| 3/4" | 25 | 25 | 26.7 | 26 | 20 | 36.8 | 25 | 92 | 76 | 52 | 80.5 | |
| 1" | 32 | 32 | 33.4 | 34 | 24 | 45 | 28 | 106 | 94 | 65 | 100 | |
| 1-1/4" | 40 | 40 | 42.2 | 42 | 30 | 53.5 | 28 | 112.5 | 103 | 70 | 108 | |
| 1-1/2" | 50 | 50 | 48.3 | 48 | 34 | 62 | 33 | 129 | 112 | 73.5 | 108 | |
| 2" | 63 | 63 | 60.3 | 60 | 44 | 75.5 | 39.5 | 148 | 126 | 81 | 138 | |
| 2-1/2" | 75 | 75 | 73 | 76 | 56 | 92.5 | 39.5 | 177.5 | 166 | 108.5 | 192.5 | |
| 3" | 90 | 90 | 88.9 | 89 | 71 | 107 | 48 | 209 | 181 | 116 | 192.5 | |
| 4" | 110 | 110 | 114.3 | 114 | 86 | 134.5 | 78 | 294 | 236 | 151.5 | 262 | |
