ProductsHigh Pressure Corrosion Resistant 1-16 Inch Diameter Water Well PVC
UPVC CASING AND SCREEN PIPE
High Pressure Corrosion Resistant 1-16 Inch Diameter Water Well PVC

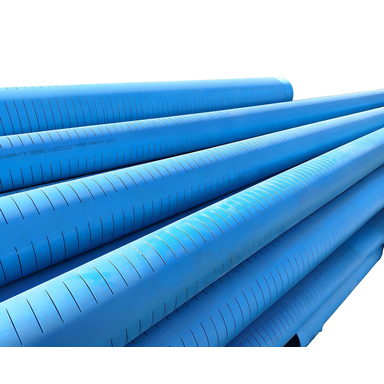

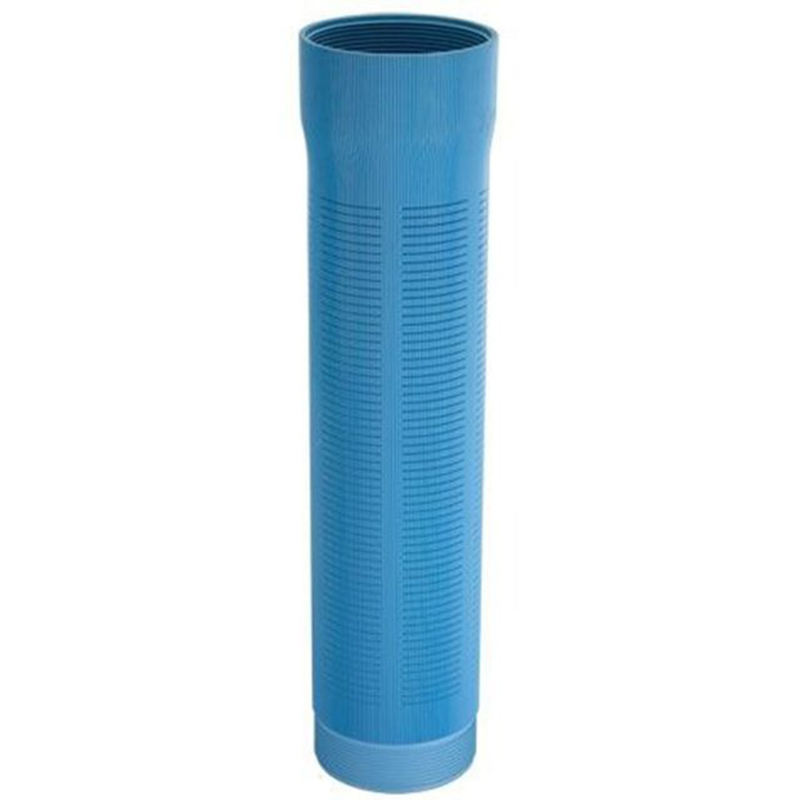

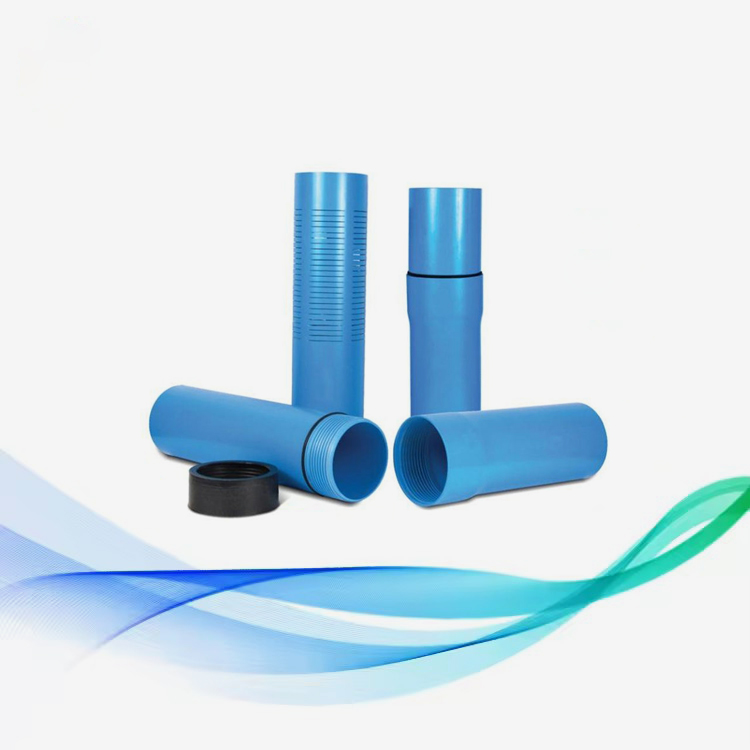

High Pressure Corrosion Resistant 1-16 Inch Diameter Water Well PVC Pipes Casing Screen Pipes for Water Drilling
| KEY ATTRIBUTES | |
|---|---|
| Item | Details |
| Product Name | High Pressure Corrosion Resistant 1-16 Inch Diameter Water Well PVC Pipes Casing Screen Pipes for Water Drilling / Factory Sale 200mm Diameter PVC Pipe Water Well Pipe |
| Name | PVC Well Casing Pipe |
| UPVC Size range | 63mm -400mm (1-16 Inch) or as required |
| Customize service | Diameter, color and logo all can be customized; Other size customizable |
| Delivery time | Usually 3-7 working days |
| Standard length | 4m/6m |
| Connection method | Socket thread Connection, Glue, UPVC fittings, rubber ring |
| Application | Water well casing pipe, water well screen filter pipe, Water filter, Water supply, water drainage, Cable conduit, Irrigation, Hydroponic, Water Drilling |
| Feature | High Pressure, Corrosion Resistant |
| Product Parameters (Wall Thickness by Size & Pressure) | |||||||
|---|---|---|---|---|---|---|---|
| mm | 0.63Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa | 2.5Mpa |
| 63 | 2 | 2.5 | 3 | 3.8 | 4.7 | 5.8 | 7.1 |
| 75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.9 | 8.4 |
| 90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
| 110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 3.1 | 3.9 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
| 250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
| 280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
| 315 | 7.7 | 9.7 | 12.1 | 15 | 18.7 | 23.2 | |
| 400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
| Other size | customizable | ||||||
